4-CH H.264MP DVR system adopts video compression of H.264. 4 channel host, realtime, 1 channel audio input and 1 channel audio output. Supports the operation of preview, recording, playback, network transmission, backup, mobile control and interface operation; IE broeser centralized monitoring and control 20 DVRS, multi-user network monitoring (10 at the same time); PTZ, USB, U-disc, USB burner, network backup.
There are multiple recording modes: automatically continuation, time recording, motion detection, triggered alram. Imaging user interface, USB mouse operation, direct and convenient for use. Recording backup: normal play, FF, FR, manually unicast frame, dragging backup progress bar to fix the time position. 4 pieces black dome cameras are included.
Features:
● Video compression of H.264.
● 4 channel host, realtime, 1 channel audio input and 1 channel audio output.
● D1, HD1, CIF recording resolution, 6 class adjustable picture quality.
● Supports the operation of preview, recording, playback, network transmission, backup, mobile control and interface operation.
● Multiple recording modes: automatically continuation, time recording, motion detection, triggered alram.
● Imaging user interface, USB mouse operation, direct and convenient for use.
● Support PTZ, USB, U-disc, USB burner, network backup.
● Support IE broeser centralized monitoring and control 20 DVRS, multi-user network monitoring (10 at the same time).
● Recording backup: normal play, FF, FR, manually unicast frame , dragging backup progress bar to fix the time position.
● 4 pieces black dome cameras.
Specification:
Digital Video Recorder Specification
Video Input
4-channels
Audio Input
1-channels
Audio Output
1-channels
Hard Disk Interface
Support one hard disk, max for 2TG
USB Interface
Support USB mouse, USB burner, U disk, USB mobile hard disk
Dome Camera Specification
Image Sensor
A: 1/4 SHARP
B: 1/3 SHARP
C: 1/4 SONY
D: 1/3 SONY CCD
Effective Pixels
PAL:512(H)×582（V）
NTSC:512(H)×492(V)
Horizontal Resolution
420TV lines
Signal System
PAL/NTSC
Minimum Illumination
0.000Lux×F1.2（LED on）
LED
Φ5 12PCS
Infrared Lamps
15m
Backlight Compensation
On
Shutter Speed
1/50(1/60)-1/100,000sec
White Balance
Auto
S/N Ratio
More than 48db
Operation Temperature
-20℃- +60℃ RH95% Max
Sync System
Internal Synchronization
Video Output
1.0Vp-p.75Ω
Power Requirement
DC12V±10％1000MA

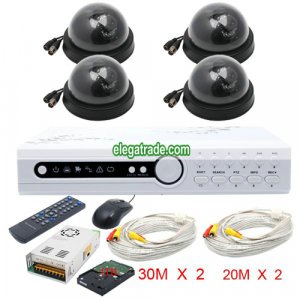

Package Contains:
● 1 * H264 4-CH DVR
● 4 * Black dome cameras
● 2 * 30M Video cable
● 2 * 20M Video cable
● 1 * 10A Power supply
● 1 * Seagate 1TB STAT port HD
